EK5-901

EK5-901

EK5-901

EK5-901 Pro 4WD offers best-in-class performance, premium style and comfort. Equipped with fuel-efficient 4-cylinder engine and turbocharger intercooler, that delivers maximum output of 88HP@2200ERPM. Its heavy-duty hydraulic lift, transmission and ROPS ensure extra durability and ease when it comes to performing rigorous tasks.
HORSE POWER
88.0HP
ENGINE DISPLACEMENT
3,680cc
WEIGHT
3,533KG
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

FEATURES

Engine

4-cylinder, turbo charged, intercooler, direct injection engine makes all applications at ease without engine RPM drop. The rugged engine also deliver more output and more saving with better fuel economy.

Comfort

Comfort

The presence of power steering and full flat platform reduces operator fatigue and increases comfortability even during long working hours.

Synchro Mesh Transmission

Synchro Mesh Transmission with 12 Forward + 12 Reverse with Synchro Shuttle offers a range of multiple speeds for different applications and soil conditions, allowing the operator convenient shifting patterns and comfort during demanding tasks.

Synchro Mesh Transmission

Double clutch independent PTO

Double clutch independent PTO makes it easy to cut-off PTO power while on turns during PTO operation giving comfort to operator and prolonging clutch life.

Double clutch independent PTO

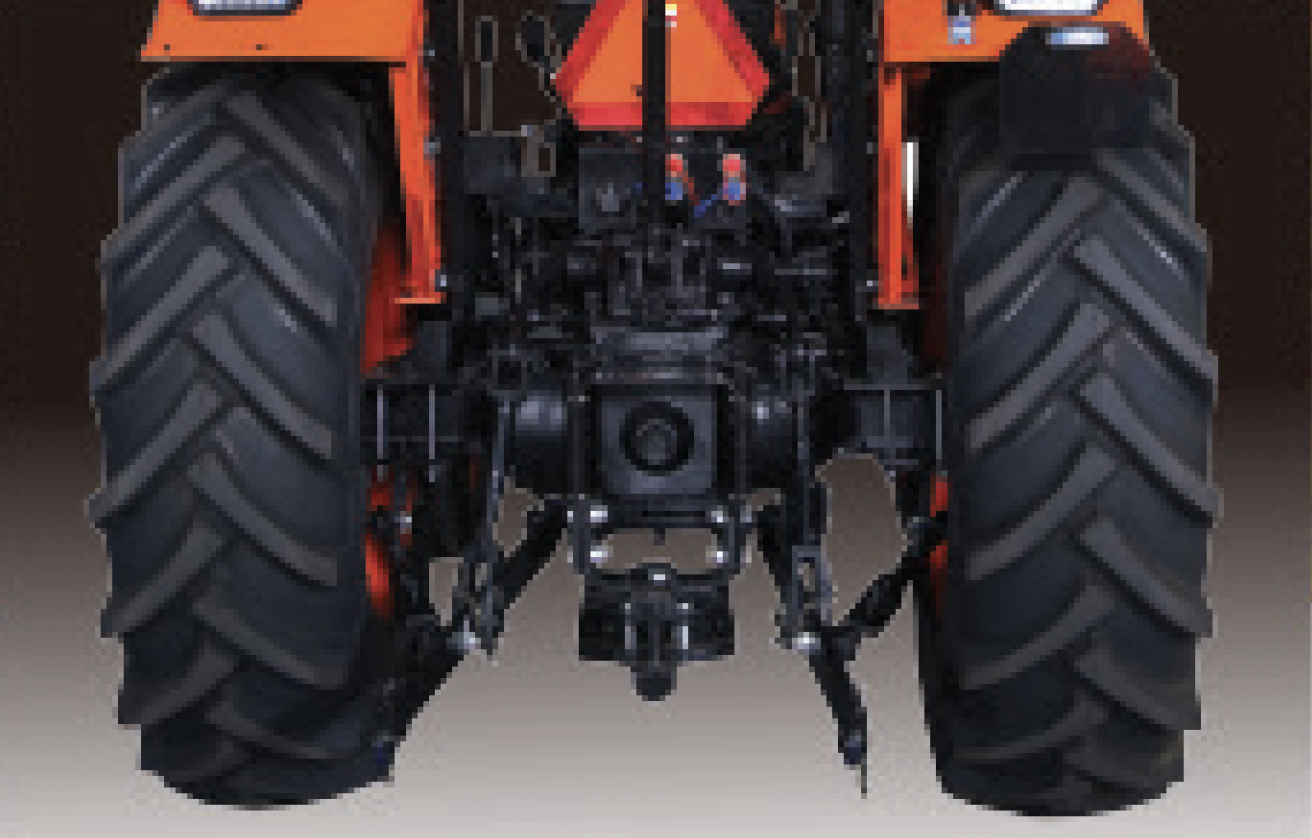

3-point Hitch

The category II 3-point hitch provides fast and simple attachment of rear-mounted implements.

Ground speed PTO

Ground speed PTO

Ground speed PTO is a powerful tool for hauling and earthmoving task. Ground speed PTO can transmit power to the wheels of a trailer by means of a mechanical axle. With power to all the wheels on the tractor and trailer, the combination can pull itself out of any situation, practically up a vertical wall. It is available as a standard feature in EK5-901.
MODELEK5-901 PRO 4WD
ENGINEModelE4.368TCI
MakeEscorts Ltd.
Number of cylinders4
Engine power @ rated rpmHP88
Displacementcc3680
Rated RPMrpm2200
Fuel tank capacityℓ75
Air cleanerDry, dual
TRANSMISSIONGearF12 / R12
TypeSynchro Mesh
CLUTCH TYPEDouble
BRAKE TYPEWet disc (OIB)
MAX. TRAVELLING SPEEDForwardkm/h37.8
Reversekm/h28.3
PTOSpeedrpm540 / 540E
OutputHP73.5
TypeIndependent & Ground PTO
3-POINT HITCHCat. II
HYDRAULICSControl systemDraft & position
Lift capacity (at lower link end)kg2500
Lift capacity (at 610mm behind lifting pt.)kg1219
Auxiliary valve2 single & double acting (convertible)
SteeringPower steering
TYREFront standard tyre12.4-2.4, R1
Rear standard tyre18.4-30, R1
DIMENSIONSOverall lengthmm4220
Overall widthmm2425
Overall heightmm2700
Wheel basemm2300
Ground clearancemm405
Front tread widthmm1540-1900
Rear tread widthmm1508-1908
Turning radius w/o brakem4.6
Tractor weight (Unballasted)kg3265
Tractor weight (Fully ballasted)kg3533
*Kubota reserves the right to change the specifications without notice.
